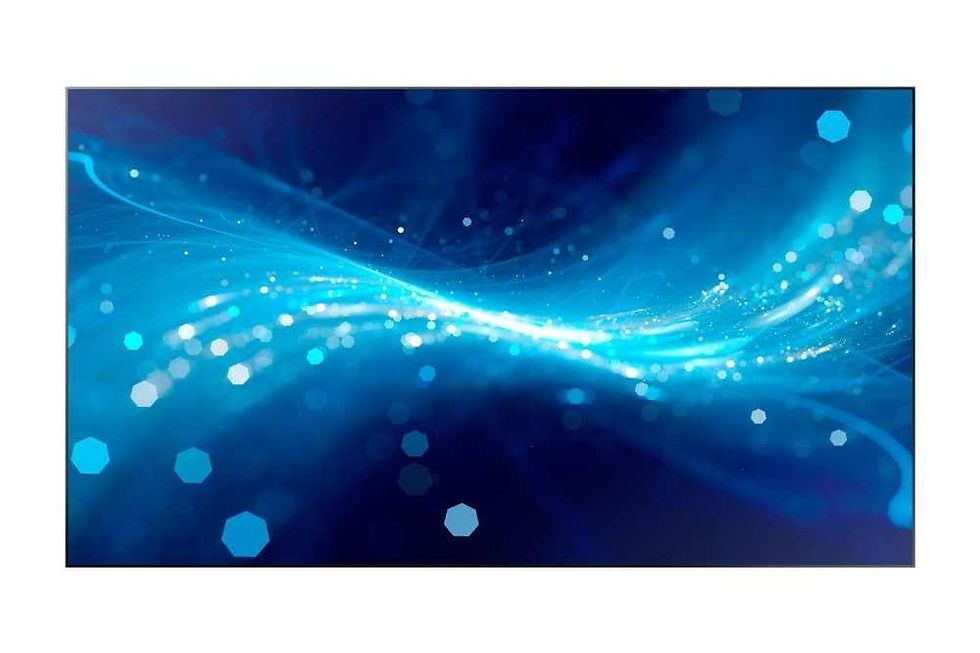

Samsung UH46F5 - UHF Series 46" Slim Depth Videowall Display

Panel
Diagonal Size46"

TypeD-LED DID
Resolution1920*1080 (Full HD)

Pixel Pitch(mm)0.53025 (H) x 0.53025(W)
Active Display Area(mm)1018.08(H) x 572.67(V)
Brightness(Typ.)700 nit

Contrast Ratio4000:1

Viewing Angle(H/V)178/178

Response Time(G-to-G)8ms
Display Colors8 bit - 16.7M
Color Gamut72%
Operation Hour24/7

Haze11%
Display
Dynamic C/RMEGA DCR
H-Scanning Frequency30kHz ~ 81kHz
V-Scanning Frequency48Hz ~ 75Hz
Maximum Pixel Frequency148.5MHz
Connectivity
Input
RGBDVI-D, Display Port 1.2
VideoHDMI 2.0 (2)

HDCPHDCP 2.2
AudioStereo mini Jack
USBOnly F/W upgrade
Output
RGBDP1.2(Loop-out)
AudioStereo mini Jack
External ControlRS232C(in/out), RJ45

External SensorDetachable type(IR)
Power
TypeInternal
Power SupplyAC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
Max[W/h]132

Typical[W/h]98

BTU(Max)450
Sleep modeless than 0.5W
Off modeless than 0.5W
Mechanical Specification
Dimension (mm)
Set1023.8 X 578.4 X 47.9
Package1171x734x277
Weight (kg)
Set13.5kg
Package19.5kg
VESA Mount (mm)400 * 400 (mm)
Bezel Width (mm)3.4mm(U/L), 2.0mm(R/B)
Operation
Operating Temperature0.0  ℃  ~   40.0   ℃

Humidity10.0  %  ~   80.0   %
Feature
Key FeaturesThinnest Depth, Super Narrow Bezel
Special FeaturesACM Support(Advanced Color Management), Auto Source Switching & Recovery, Haze 11%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), Video Wall(15x15(OSD)), Video Wall Daisy Chain(10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery(80hrs Clock Keeping)
Internal Player
ProcessorN/A

On-Chip Cache MemoryN/A

Clock SpeedN/A

Main Memory InterfaceN/A
GraphicsN/A

Storage (FDM)N/A

MultimediaN/A

IO PortsN/A
Operating SystemN/A
Certification
SafetyUL (USA) : UL 60950-1 CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1 NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore) : IEC60950-1 GOST (Russia) : IEC60950-1, EN55022 SIQ (Slovenia) : IEC60950-1, EN55022 PCBC (Poland) : IEC60590-1, EN55022 NOM (Mexico) : NOM-019-SCFI-1993 IRAM (Argentina) :IEC60950-1 SASO (Saudi Arabia) : IEC60950-1

EMCFCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) V-3 (CISPR22) KCC (Korea) :KN22, KN24 BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB9254-2008, GB17625.1-2012

IP RatingIP5x
Accessory
IncludedQuick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries
Optional
StandN/A

MountWMN-46VD

SpecialtyN/A
Media Player
Media Player
Media PlayerSBB, Signage player box
